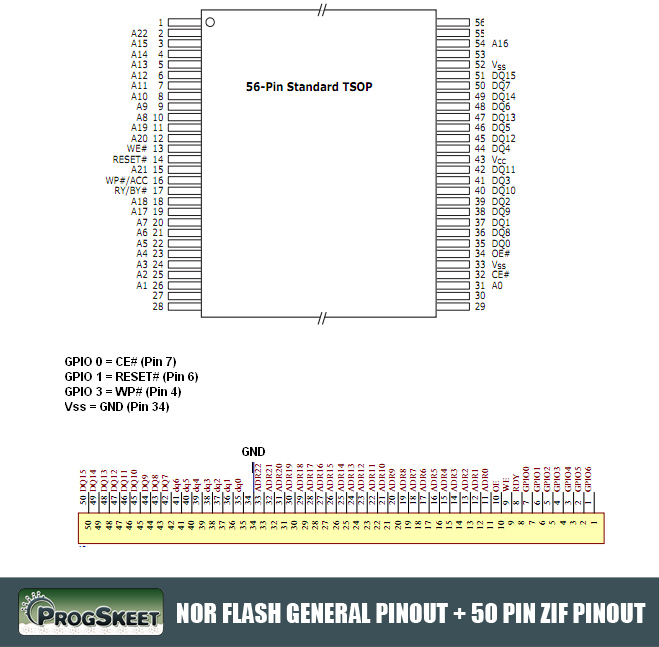

The nor pin-out for 360-CLIP-50:

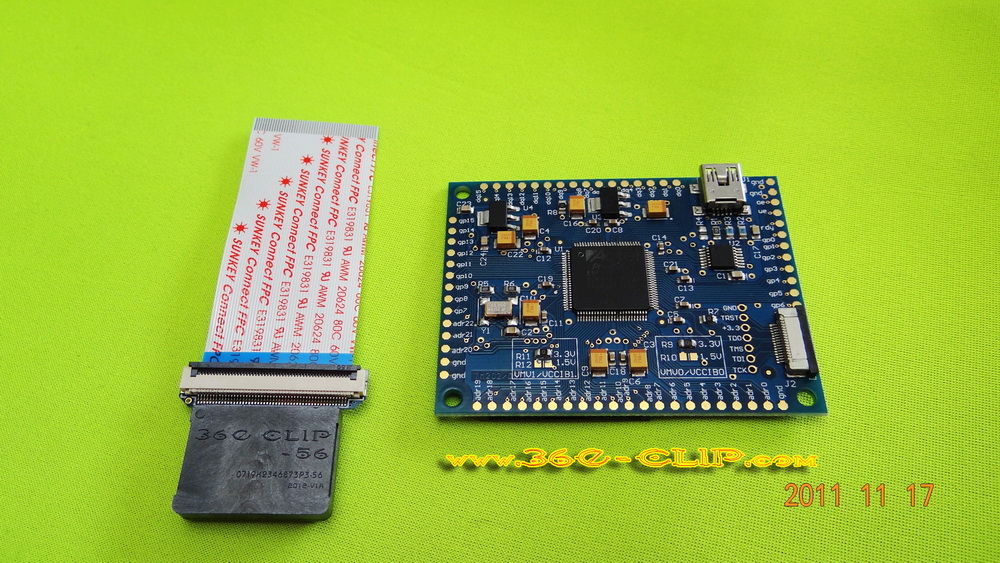

the 360-NOR-CLIP looking:

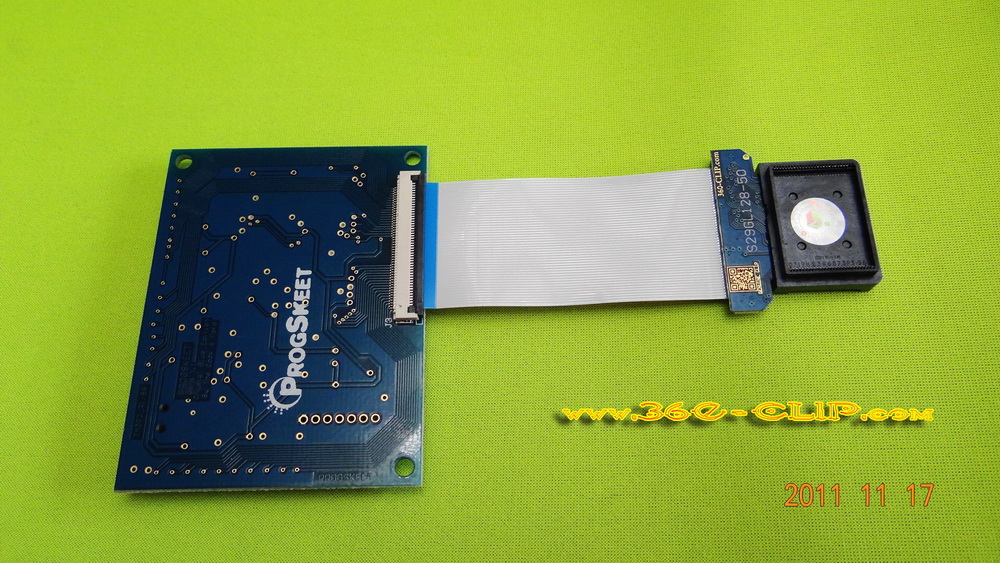

the retail pack included items:

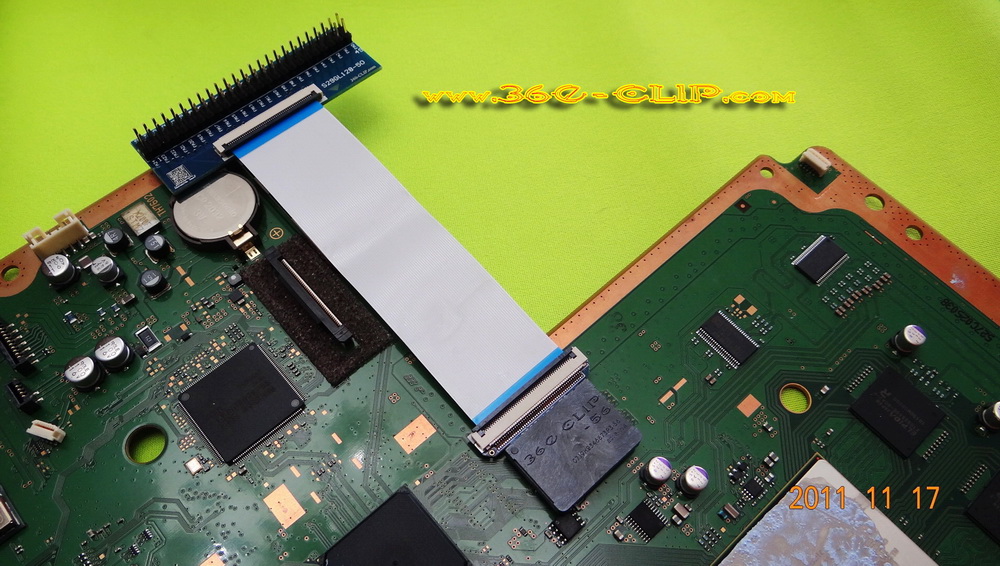

How to use the 360-NOR-CLIP testing board:

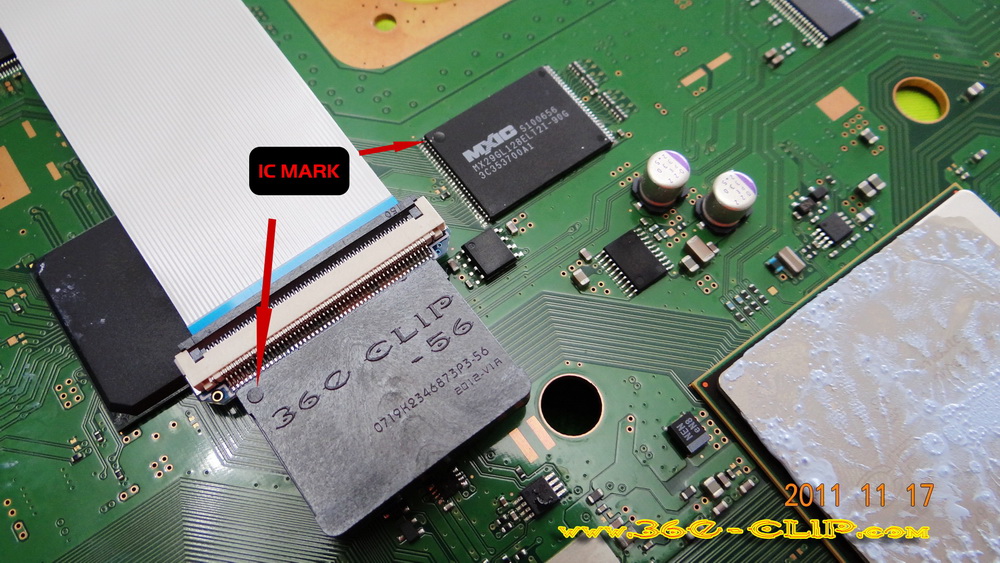

please note the IC MARK must match with same way:

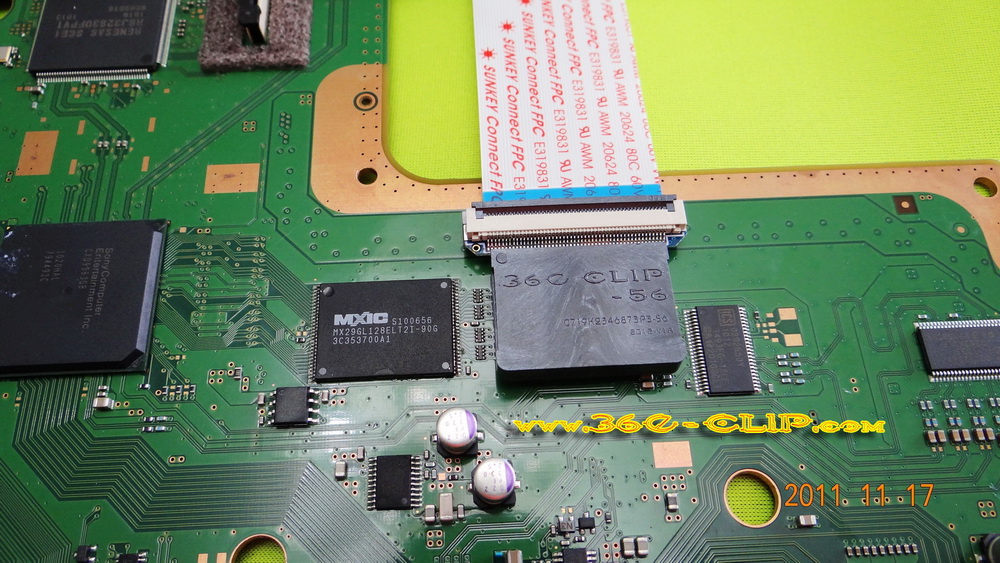

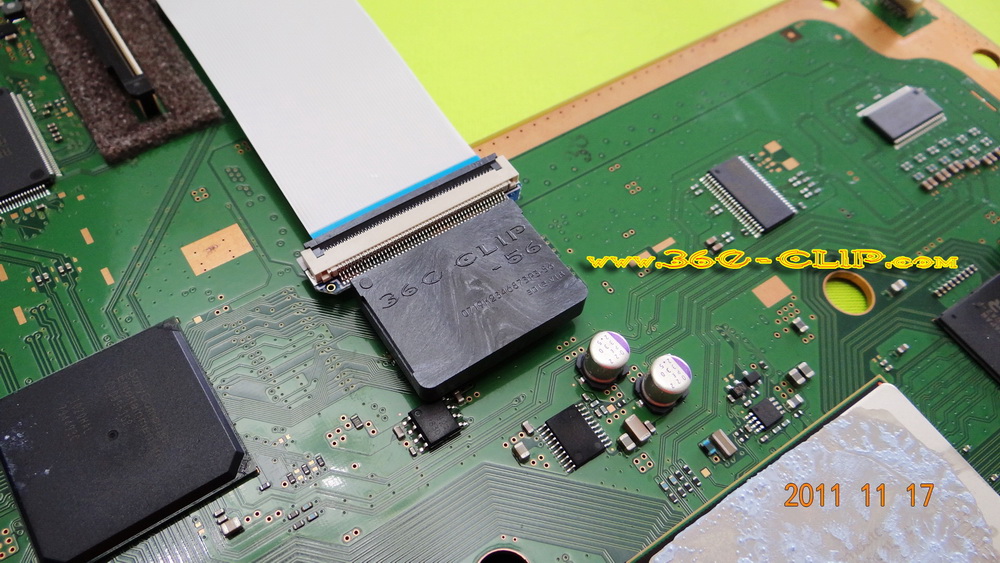

then put the 360-NOR-CLIP on it and press down let it make a good connection.
now you can start to work already, it's full pin-to-pin parallel mode:)

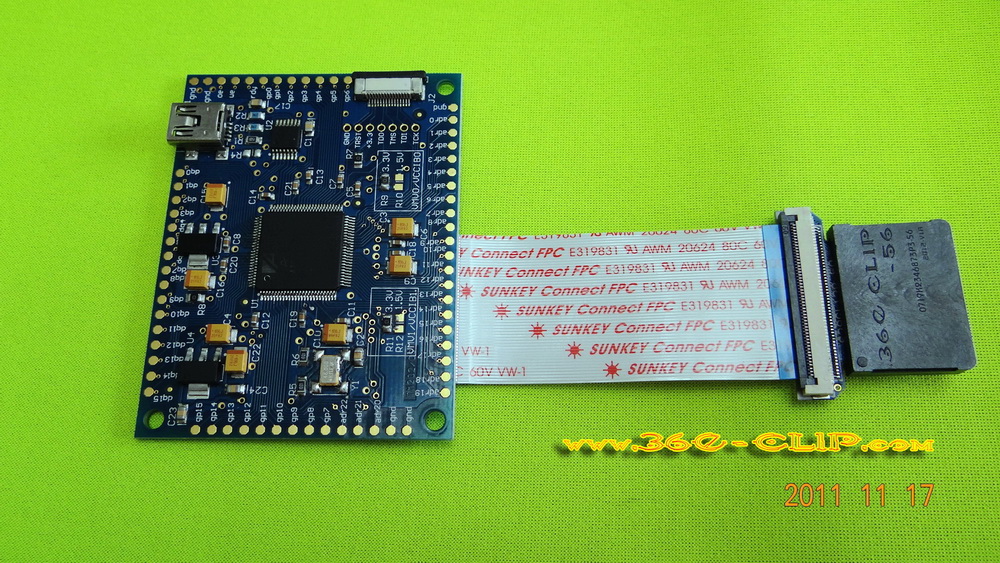

how to work with progskeet:
you must use this special FPC to link the progskeet, can't use the other one!

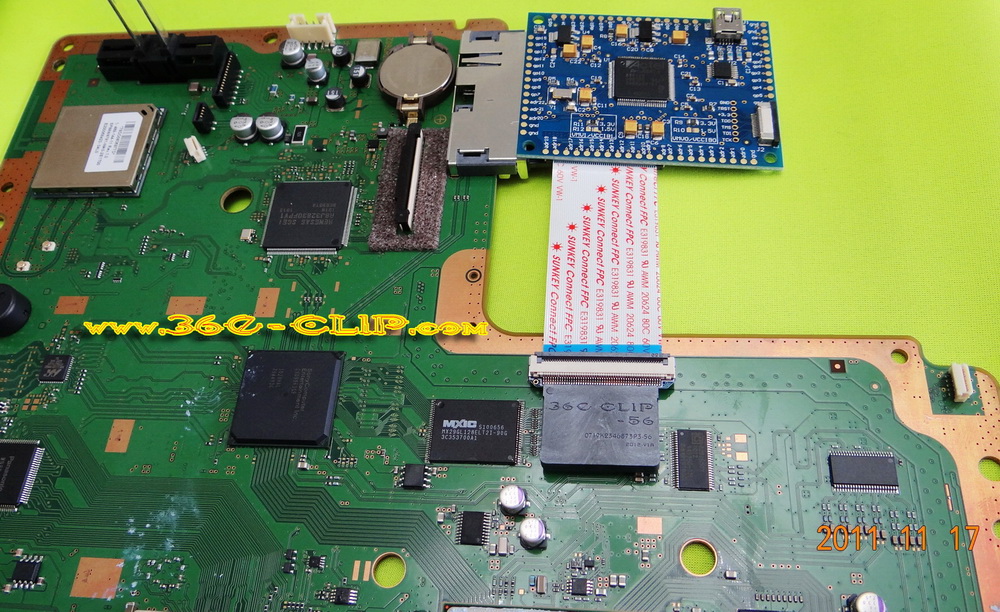

how to link:
must take care the "IC MARK" direction.
now your progskeet is ready to work.
