Features

Where to buy:
ic2005 shop

 [NEWS]



 Feb. 18th 2013 --- The full pins universal clip for 48Pin and 56 Pin is ready now, support all TSOP(1) type ICs.

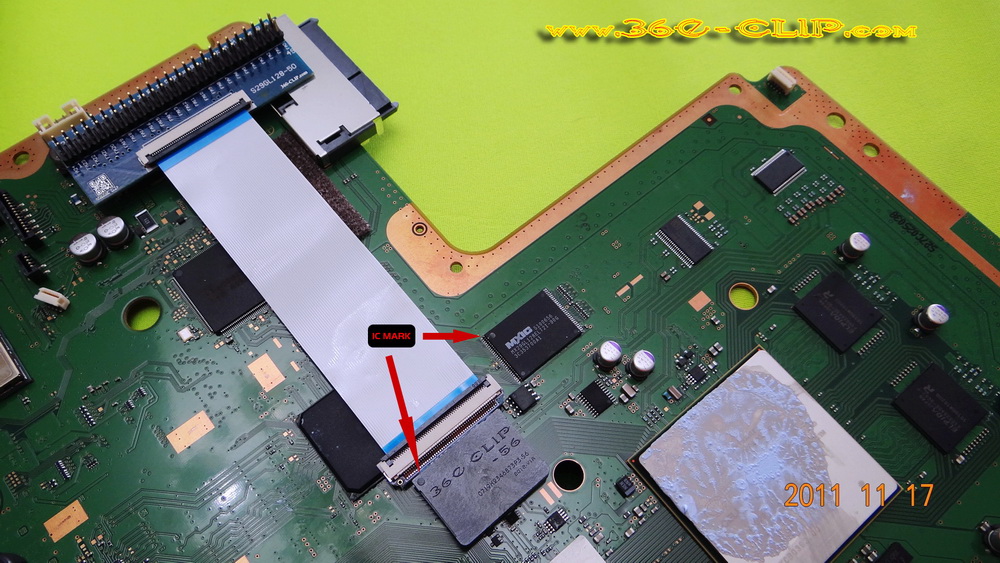

 Nov. 18th 2011 --- The new 360-Clip 56Pin version for the P3 NOR flash  in stock now.

 Sep. 28th 2011 --- The new 360-Clip 56Pin version for the P3 NOR flash  coming soon, will release in next month :)



The 360-NOR Clip details









Tow to work with the test board:



How to work with progskeet plug and play:



The 360-NAND Clip details





It come with one 32pin FPC and testing pin-out PCB board



Support dual-CEs NAND flash chip





The retail packing



More photos:



Where to buy: http://www.ic2005.com/shop/product.php?productid=129



How to use:

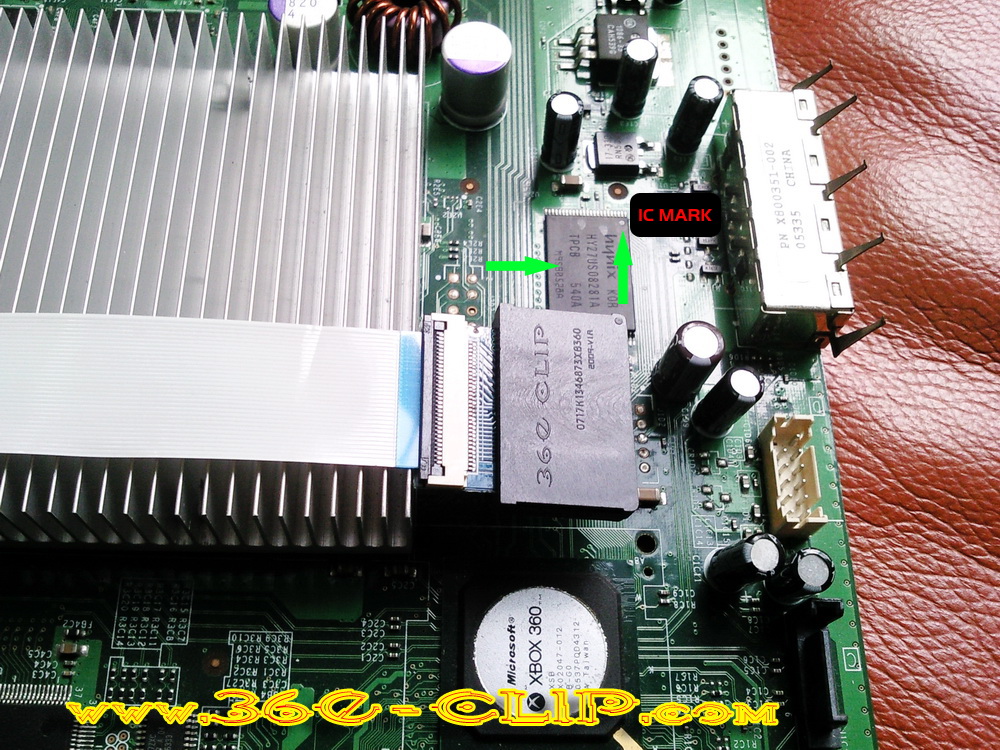

[1] Make sure where is the NAND flash chip #1 pin mark point, and put the 360-clip to the same way

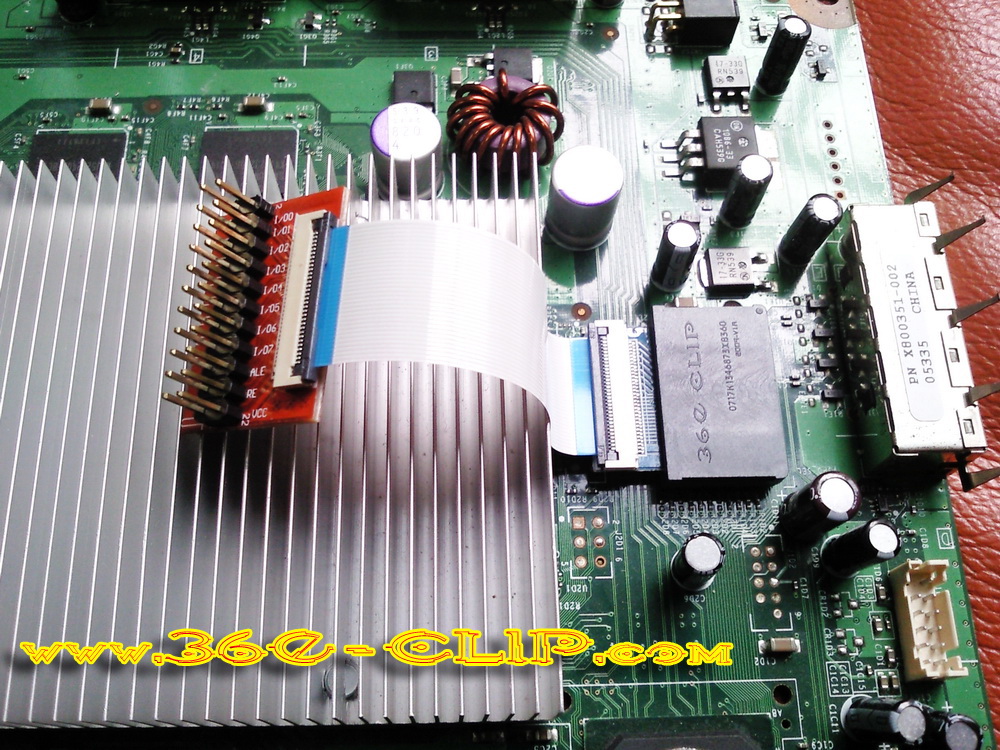

[2] Press the 360-clip on the NAND flash chip, make sure the connection is stable,then can start to work on the testing pin-out PCB board. Plug & Work.

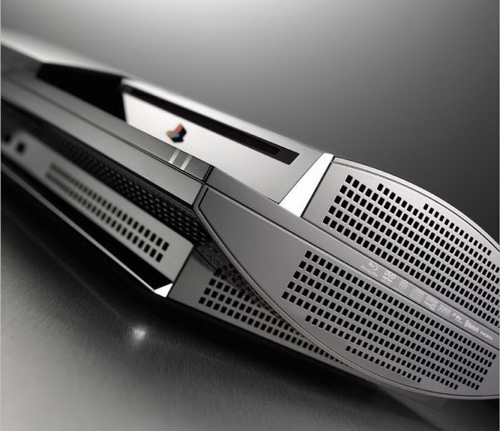

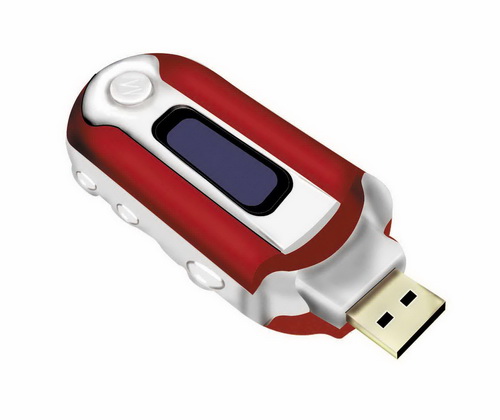

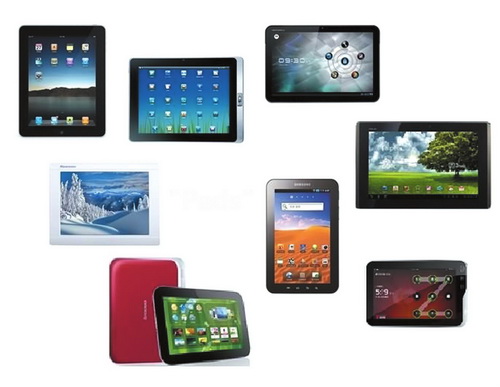

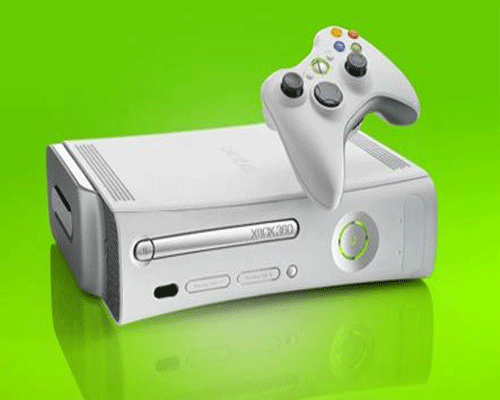

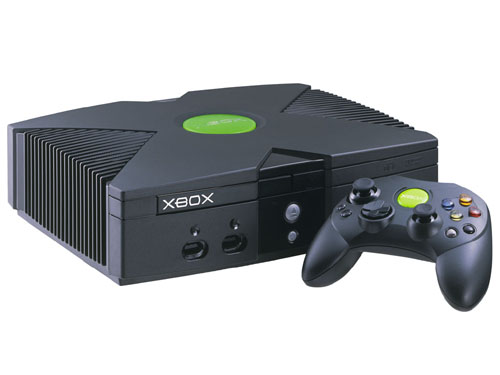

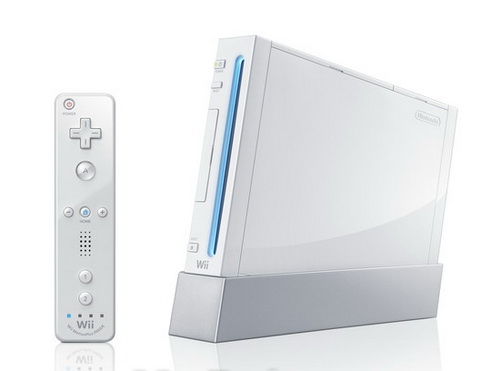

On other system, eg. XBOX,XB360,PS3,Wii,MP3,MP4,Tablet PC.......
& ANY 48pin TSOP NAND FLASH CHIP, the working method is same.
